Videojet DataFlex 6320

Sorry, but Videojet 6320 printer is no longer available – To find the best replacement please look for our current range of TTO printers here. If you need any support don’t hesitate to contact us.

Videojet DataFlex 6320

Thermal Transfer Overprinters (TTO)

Pouch Printing Machine

The Videojet DataFlex 6320 Thermal Transfer Overprinter is available in two print widths, 32 mm and 53 mm, to provide the best combination of printhead and ribbon width to deliver the most cost effective solution for your application requirements. Engineered for applications such as vertical form fill and seal, the DataFlex 6320 delivers print speeds up to 250 packs/min.

Contact us for New Equipment Sales: +91 72900-62569

×

Contact Us:

New Equipment Sales: +91 72900-62569
Service & Support: 1800-103-4812

Specs

Specification
32 mm53 mm
Printer ModeIntermittent and Continuous MotionIntermittent and Continuous Motion
Print Gap0.5 mm (0.020 in)0.5 mm (0.020 in)
Maximum Ribbon Length1200 m (3937 ft)1200 m (3937 ft)
Ribbon WidthsMin: 20 mm (0.8 in)
Max: 55 mm (2.16 in)
Min: 20 mm (0.8 in)
Max: 55 mm (2.16 in)
Continuous Mode:
     Maximum Print Area
     (Width x Length)

32 x 200 mm

53 x 200 mm

     Maximum Print Speed750 mm/sec (29.53 in/sec)750 mm/sec (29.53 in/sec)
     Minimum Print Speed 0 mm/sec (0 in/sec)0 mm/sec (0 in/sec)
Intermittent Mode:
     Maximum Print Area
     (Width x Length)
32 x 75 mm
(1.26 x 2.95 in) RH option
32 x 68 mm
(1.26 x 2.68 in) LH option
53 x 75 mm
(2.08 x 2.95 in) RH option
53 x 68 mm
(2.08 x 2.68 in) LH option
     Maximum Print Speed 750 mm/sec (29.53 in/sec)750 mm/sec (29.53 in/sec)
     Minimum Print Speed 50 mm/sec (1.96 in/sec)50 mm/sec (1.96 in/sec)
Bar Code PrintingYes, as variable informationYes, as variable information
Estimated Maximum Throughput (Single Line Code, Continuous Mode)250 packs/min250 packs/min
Standard User InterfaceCLARiTYâ„¢ 8.4 inch SVGA color LCD touchscreenCLARiTYâ„¢ 8.4 inch SVGA color LCD touchscreen
Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface)OptionalOptional
Standard CommunicationRS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII commsRS232, Ethernet, USB Memory Stick, select ZPL command emulation, Binary and ASCII comms
Web Browser CapabilityYesYes

Benefits

Uptime Advantage and built-in productivity save time and money:

  • 53 mm (2.08 in) maximum print width for applications with smaller code requirements better utilizes ribbon and lowers your per unit cost
  • A patented and proven clutchless ribbon drive maintains optimal ribbon tension and virtually eliminates maintenance-related downtime
  • Maximum ribbon length of 1200 m (3937 ft)
  • 0.5 mm (0.02 in) print gap translates to more codes per ribbon roll
  • A range of ribbon saving features, such as interleaved and radial printing, can increase ribbon utilization by at least 2 times

Simple Usability keeps operators focused on production, not the printer:

  • Operates as a standalone printer using color touchscreen interface for simple operation
  • Intuitive CLARiTYâ„¢ 8.4 inch color touchscreen makes set-ups fast and easy with fewer errors
  • Integrate with PLCs or factory management systems for centralized print control eliminating errors
  • Full printer control from your packaging machine interface using the printer’s web browser functionality to simplify operation
  • A single DataFlex 6320 can control and coordinate printing on up to four printers using the built in Master/Follower functionality

Code Assurance helps eliminate costly coding errors:

  • Advanced coder software virtually eliminates code set-up errors
  • CLARiSOFT® code design software prevents incorrect printed dates, missed codes and costly production rework

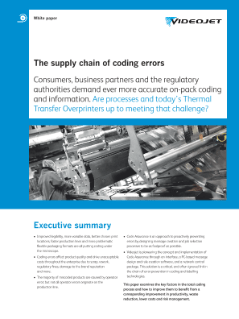

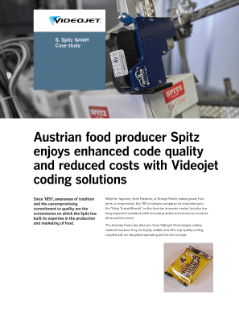

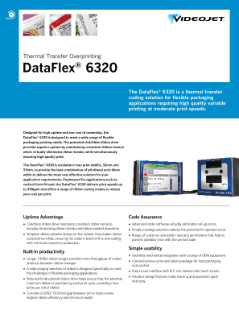

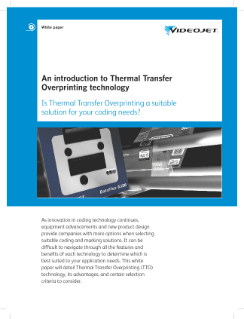

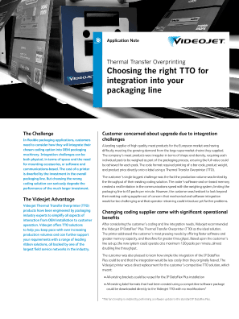

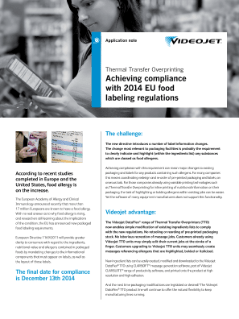

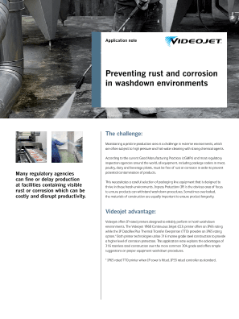

Documents
