Videojet® 3640 CO2 Laser Marker

Laser Marking Systems

The 3640 60-Watt CO2 laser marking system is engineered to help address high-speed and high-volume applications in the pharmaceutical, tobacco and beverage markets. It is a compact high-speed laser, and has been designed to process complex codes at high speeds, with the industry’s widest mark field.

Contact us for New Equipment Sales: +91 72900-62569

×

Contact Us:

New Equipment Sales: +91 72900-62569
Service & Support: 1800-103-4812

Videojet 3640

New Equipment Sales: +91 72900-62569

×

Contact Us

Specs

Specification
Value
Laser TubeCO2
Maximum Power60W
Laser CoolingAir cooled
Maximum Print Speed2100 characters/sec
Maximum Line Speed15 m/sec (49 ft/sec)
Environmental ProtectionIP54, IP65
Beam OutputSteered Beam
Laser Source Expected Life45,000 hours
Laser Wavelength Options10.6 μm, 10.2 μm, 9.3 μm
Focal Distance Options64 mm (2.50 in) – 600 mm (23.62 in)
Maximum Mark Window601 x 440 mm (23.66 x 17.32 in)
Standard I/O ConnectivityInternal Terminal Connections
Standard User InterfaceHandheld
Optional User IntefacePC, CLARiTY™ Laser Controller, TCS
UmbilicalDetachable , 3 lengths
Plant Air UsedNo
Certifications/ApprovalsCE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CDRH/FDA

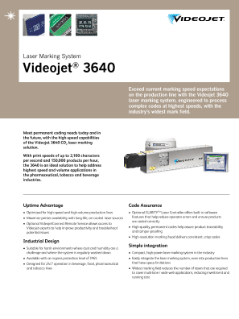

Download full spec sheet

Benefits

Uptime Advantage helps keep productivity up and costs down:

  • Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines
  • Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
  • Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot potential issues

Industrial design engineered for high performance:

  • Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down
  • Available with an ingress protection level of IP65
  • Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line

Flexibility and simple usability comes as standard:

  • Compact, highest-powered laser marking system in the industry
  • Easily integrate the laser marking system even into production lines that have space limitations
  • Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost

“Improved line flexibility allowed for rapid implementation of changes to carton labeling. Eliminating labels achieved significant cost savings.”
Mike Wilcox – Senior Project Manager, Ascensia Diabetes (case study)

“The Videojet lasers have not had a single glitch since they were installed and are working well every day!”

Mr. Jose Luis Munoz – Manager, Avicola Velasco (case study)

“From an operator’s point of view, the Videojet lasers are far easier to work with.”

Barry Murray – Operator, Diageo (case study)

Applications

Resources

Documents

Videos

Vidyard Thumbnail
Videojet 3640 CO2 Laser marking system

Related Products

Videojet 3140 CO2 Laser
Videojet 3350 CO2 Laser
Videojet 3640 CO2 Laser
DescriptionOffers all of the performance features found in higher wattage Videojet lasers, but with a power source better matched for moderate line speed applications.With virtually no font, code or graphic restrictions and line speeds up to 900 m/min., the 3350 is an ideal solution for marking complex codes at high speeds in food, beverage, cosmetics, pharmaceutical and extrusion industries.With print speeds of up to 2,100 characters per second and 150,000 products per hour, the 3640 is an ideal solution to help address highest speed and volume applications in the pharmaceutical, tobacco and beverage industries.
Shared specs – Commonly used for marking non-metallic materials such as glass, paper, plastics, rubber, and wood
– Air cooled
– IP54 laser head, IP65 supply unit
Max line speed900 m/min (2,940 ft/min)
Max power10-watt30-watt60-watt
Wavelength options10.6 μm, 9.3 μm10.6 μm, 10.2 μm, 9.3 μm
Max mark window485 x 351 mm (19.09 x 13.81 in)601 x 440 mm (23.66 x 17.32 in)
Certifications/approvalsCE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CDRH/FDA
CE, TÜV/NRTL, FCC, KC, BIS Compliance (no certification required): ROHS, CDRH/FDACE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA
